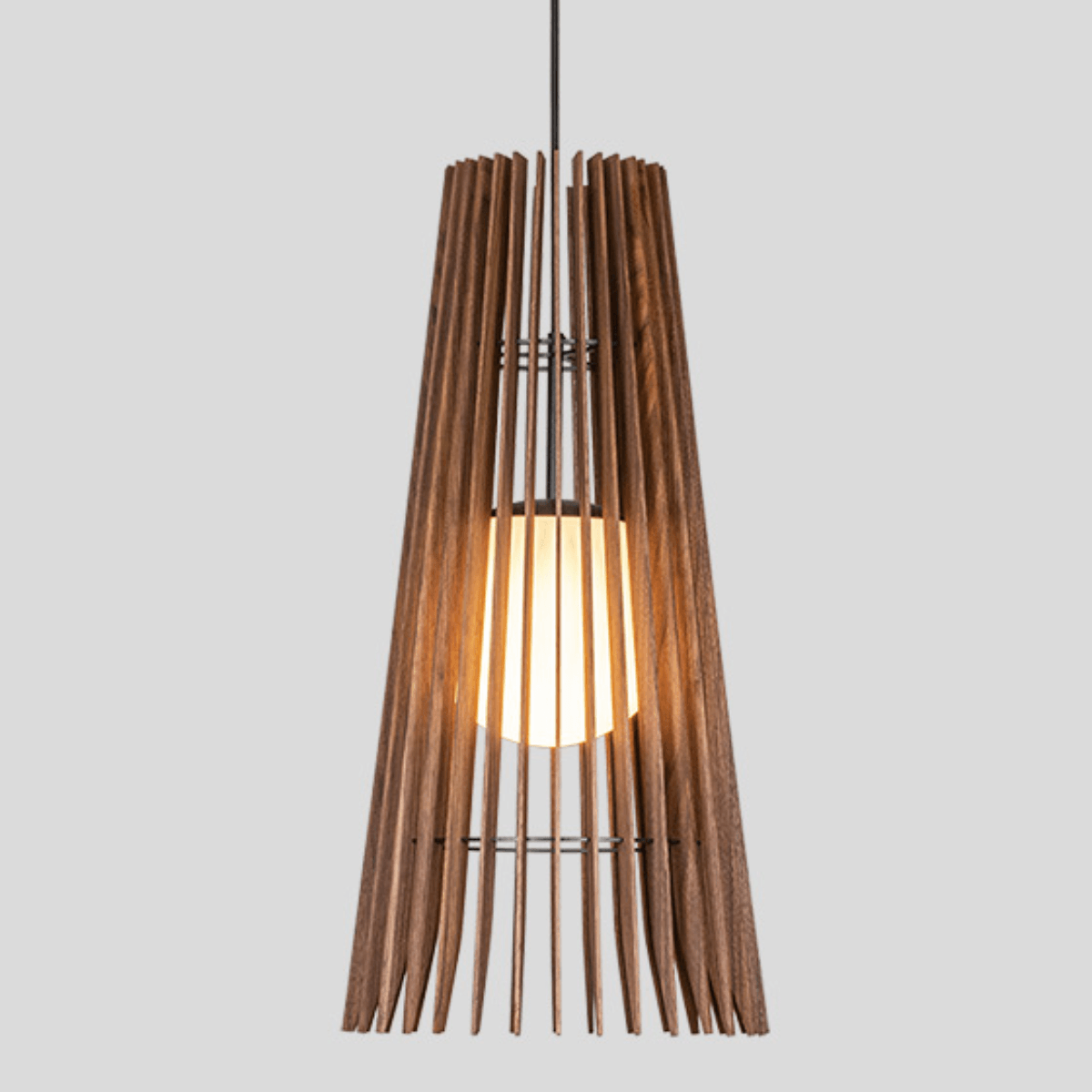

Lex 28 Pendant

Lex in Latin is defined as Law, Principle, or Condition. Simple architectural principles guided the design and construction of the Lex pendant. Three primary parts, the light, the hubs, and the wood slats, compose the form, function, and feel. The laws of attraction are often mysterious, and Lex's ability to appear both solid and porous simultaneously creates a sense of intrigue and freshness.

Dimensions:

• 13.4' Diameter, 28' H
• Metal Ceiling Plate: 5' Diameter, 0.4' H
• Drop length field adjustable: 0’-14” min, 8’-0” max
• Suitable for a sloped ceiling up to 45 degrees
• Weight: 5 lbs

Integrated LED Specifications:

• Light output: 915 Lumens (source), based on 2700K
• Light color: 2700 K, 3000 K, 3500 K, or 4000 K
• Color accuracy: 90+ CRI
• Input Voltage: 120-277 V AC
• Power usage: 9W
• Dimmablility: TRIAC, ELV & 0-10 V dimming
• Driver to be housed in canopy
• Driver dimensions: 3.3” x 1.6” x 1.0”, included

Candelabra E12 Specifications:

• Lamping: E12 candelabra, 60 W max, G16.5 frosted lamp recommended
• Bulb not included
• Input voltage: 125 V AC max
